Why compact buildings need a different passenger elevator strategy
Integrating a passenger elevator into a small-scale building requires a specialized approach that prioritizes spatial efficiency without compromising safety, accessibility, or passenger comfort. Standard lift systems often demand extensive architectural modifications and large concrete shafts, which are neither cost-effective nor structurally feasible in confined property footprints.
(Note: All dimensions, capacities, and performance metrics discussed in this guide are illustrative; exact requirements vary significantly by local jurisdiction, building codes, and manufacturer specifications.)
In urban environments where real estate commands a premium, minimizing the footprint of utility shafts translates directly into maximized leasable or livable square footage. By deploying compact lift technologies and customized cabin geometries, property developers can solve transportation issues in properties where traditional, bulky installations are structurally prohibitive. When retrofitting compact elevators into existing buildings, engineers must also account for structural reinforcement, load-bearing thresholds, and shaft adaptation constraints that are especially relevant to small footprints. These specialized systems adapt to restrictive shaft dimensions while maintaining the rigorous mechanical performance and ride quality expected in modern vertical mobility solutions.
How to define small passenger elevator requirements
Establishing the technical prerequisites for a small passenger elevator begins with evaluating the maximum structural allowance of the property. Unlike conventional commercial lifts that routinely require a standard 2.0-meter by 2.0-meter hoistway, compact alternatives can often operate safely within a highly restricted footprint, sometimes as small as 1.5 meters by 1.4 meters. However, there is a real tension between these ultra-compact footprints and wheelchair-accessibility codes. Dimensions this small generally will not satisfy public-building accessibility requirements in many regions, making them better suited for private residences or specialized use cases.
Planners must carefully calculate the required rated load capacity, which typically ranges from 320 kg to 450 kg for compact models, accommodating four to six passengers per trip. Defining these dimensional and weight requirements early in the architectural planning phase prevents costly structural revisions, minimizes the loss of usable floor space, and ensures the selected equipment aligns perfectly with the building’s load-bearing thresholds.
Building types and traffic patterns that affect capacity
The intended application of the building heavily dictates the required capacity, motor durability, and operational speed of the elevator. Low-rise residential apartments, boutique medical clinics, and small corporate office buildings each present distinct traffic patterns that engineers must accommodate.
For instance, a small office building experiences concentrated usage spikes during morning arrivals and lunch hours. As a general rule of thumb for commercial spaces, the elevator system should be designed with a five-minute handling capacity capable of moving 10% to 15% of the building’s peak population. This metric is calculated by dividing 300 seconds (five minutes) by the estimated round-trip time, then multiplying by the cab’s passenger capacity. Conversely, residential applications favor consistent, lower-volume usage where ride comfort, noise reduction, and energy conservation take precedence over rapid dispatching. Analyzing these daily traffic flows ensures the installed lift provides adequate, reliable service without unnecessarily over-specifying the motor capabilities, thereby optimizing both space and budget.
Key specifications for balancing footprint, capacity, and cost
Selecting the optimal passenger elevator involves a careful evaluation of spatial requirements, mechanical performance variables, and overall project budget constraints. Stakeholders must compare different drive mechanisms, structural configurations, and cab finishes to achieve the best return on investment and ensure long-term operational viability.
Comparing machine-room-less, small machine room, and hydraulic elevators
Machine-room-less (MRL) elevators utilize compact, gearless traction motors housed directly within the top of the shaft, eliminating the need for a dedicated rooftop penthouse and significantly reducing overall energy consumption compared to older geared models. Small machine room (SMR) configurations offer a practical compromise, utilizing scaled-down mechanical spaces that provide easier maintenance access for technicians.
Alternatively, hydraulic elevators remain a viable, cost-effective option for low-rise buildings up to five stories, as they do not require overhead mechanical space. However, hydraulic systems face distinct limitations, including slower operational speeds, potential environmental concerns regarding hydraulic oil, and susceptibility to heat generation under heavy use.
| Elevator Drive Type | Ideal Building Height* | Typical Speed (m/s)* | Space Efficiency | Power Profile |
|---|---|---|---|---|
| Machine-Room-Less (MRL) | Up to 20 floors | 1.0 – 1.75 | Excellent (No exterior room) | High Efficiency |
| Small Machine Room (SMR) | Up to 15 floors | 1.0 – 1.75 | Good (Compact exterior room) | Moderate-High |
| Hydraulic System | Up to 5 floors | 0.6 – 1.0 | Moderate (Requires pit/pump room) | Moderate |
*Note: Figures are illustrative; exact limits depend heavily on local codes and manufacturer specifications.

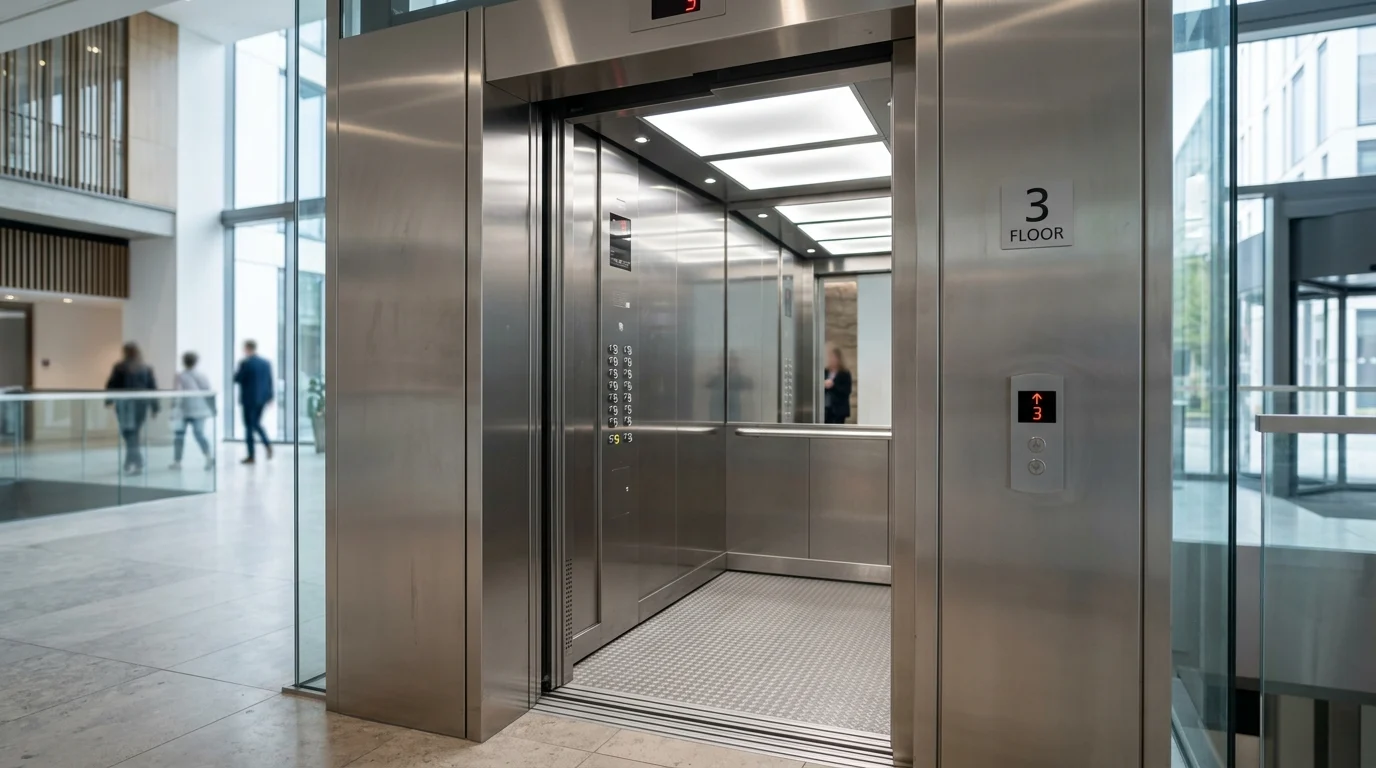

What to include in a cab size and specification comparison
Beyond the mechanical drive, the cab specifications dictate the passenger experience, interior aesthetics, and lifecycle durability. A comprehensive comparison should evaluate the weight and resilience of cab materials, such as lightweight aluminum for non-load-bearing walls and tempered safety glass for panoramic designs. However, expansive glass is typically a premium, low-volume option that can conflict with the space-saving objectives of a compact shaft, requiring clear space trade-offs.
To ensure the aesthetic aligns with the property’s architecture, cab finishes can be customized with LED lighting, durable flooring, and specialized wall panels. Crucially, cab dimensions must account for strict accessibility mandates. This requires planning for exact minimum interior dimensions, wheelchair turning circle requirements, and adequate door clearances dictated by regional codes.
Equipment should be strictly verified against specific regional and international safety benchmarks. Code applicability depends entirely on location and building type, but key standards include EN 81 (the European baseline for elevator safety) and ASME A17.1 (the primary North American safety code), alongside general ISO standards for international compliance. This guarantees the integration of essential fail-safes like automatic emergency brakes, electronic speed governors, reliable door interlocks, and mandated fire-safety protocols including fire recall, firefighter operation rules, emergency power, and evacuation protocols.
